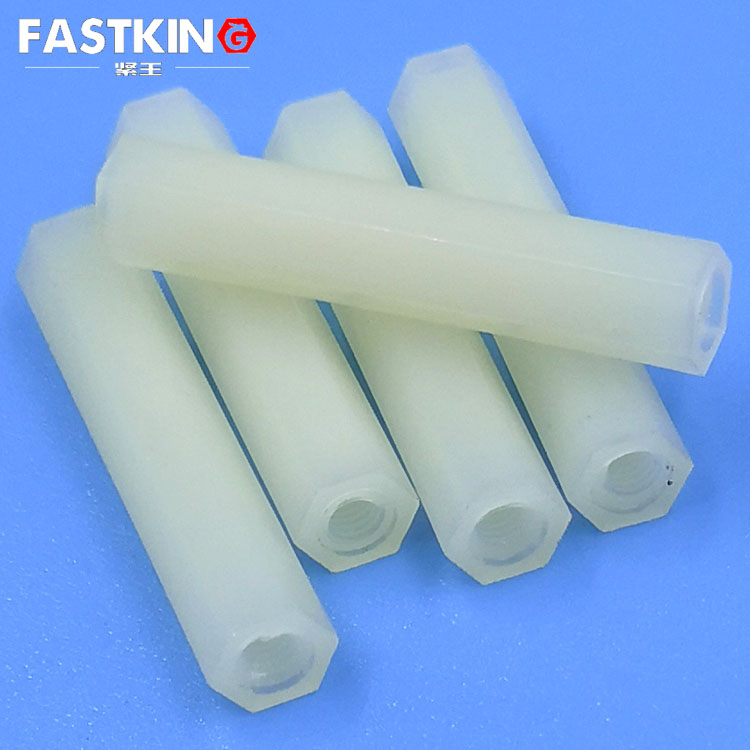

Product Description : In the precision assembly of electronic devices, home appliances, and automotive interiors, there is a seemingly small but crucial component—the PA66 white nylon hexagonal spacer nut. With PA66 nylon as its core material, it leverages the stability of the hexagonal structure and the functional characteristics of the spacer nut to become a key component for solving assembly challenges such as "comp

PA66 nylon (polyhexamethylene adipamide) is the core factor determining the performance of this spacer nut. PA66 nylon itself possesses excellent mechanical properties: its tensile strength can reach 80-90MPa, and its flexural strength exceeds 120MPa. It can withstand the tightening force during assembly and external impact during long-term use, avoiding breakage caused by fragile materials. This characteristic makes it particularly reliable in electronic devices—for example, in the connection between the internal circuit board and the shell of a router, the spacer nut can maintain structural stability even if the device generates slight vibrations during long-term operation. Meanwhile, PA66 nylon has outstanding high-temperature resistance: its continuous service temperature can reach 120℃, and its short-term temperature resistance can even reach 180℃. This allows it to adapt to high-temperature working environments of home appliances (such as oven control panels and internal components of air conditioners), preventing ordinary plastics from softening and deforming under high temperatures.

More importantly, PA66 nylon has good insulation and corrosion resistance. Its volume resistivity is as high as 10¹⁴-10¹⁵Ω・cm, which can effectively block current conduction and prevent short-circuit risks caused by the conductivity of metal spacers in circuit board components. Its resistance to acids, alkalis, and greases enables it to resist erosion from oil stains and sweat in automotive interiors (such as the inside of instrument panels and door control panels), extending its service life. In addition, the "white" appearance is not merely a visual design: white PA66 nylon undergoes special modification treatment, giving it excellent yellowing resistance. It is not prone to discoloration when exposed to light or high temperatures for a long time, ensuring the consistency of product appearance. This is particularly important for home appliances and consumer electronics that value visual texture—for instance, the spacer nuts inside the shells of white home appliances will not affect the overall aesthetics of the product due to discoloration.

From the perspective of structural design, the dual design of "hexagonal shape" and "spacer nut" of the PA66 white nylon hexagonal spacer nut precisely meets assembly needs. The hexagonal cylinder structure prevents slipping during installation: whether tightened manually or fixed with tools, it can maintain a stable stress state, avoiding assembly deviations caused by cylinder rotation. Compared with circular spacers, the hexagonal structure also forms a tighter fit with the mounting hole, reducing the shaking gap between components. For example, in the connection between the internal gear set and the shell of a printer, the hexagonal spacer nut can ensure the positioning accuracy of the gear set, avoiding printing deviations caused by excessive gaps.

The functional design of the "spacer nut" realizes the trinity role of "support + connection + spacing". Spacer nuts are usually divided into three types: "internal thread", "external thread", and "internal-external thread". The internal thread type can cooperate with screws to fix upper-layer components; the external thread type can be directly screwed into the base mounting hole; the internal-external thread type can realize precise connection of upper and lower layers of components, while controlling the spacing between the two layers through the cylinder length. For example, in circuit board assembly, using a 10mm-long internal-external thread spacer nut can not only fix the circuit board to the device shell but also ensure a 10mm heat dissipation gap between the circuit board and the shell, preventing components from being affected by overheating. In the assembly of LED lamps, the spacer nut can support the lamp panel and lampshade, preventing the lamp panel from being damaged by extrusion, while the reserved gap facilitates uniform diffusion of light.

In practical application fields, the adaptability of the PA66 white nylon hexagonal spacer nut covers multiple industries. In the electronic and electrical industry, it is the "basic framework" for circuit board assembly—for example, the connection between the main board and the middle frame of a smartphone requires the use of micro PA66 nylon spacer nuts (2-3mm in diameter, 5-8mm in length), which not only ensure the precise positioning of the main board but also protect the main board components through insulation. Inside laptops, the connection between the keyboard module and the body shell also relies on this spacer nut: its lightweight characteristic can reduce the overall weight of the device, and its shock absorption effect can reduce the vibration transmission when the keyboard is tapped.

In the home appliance field, it is the "gap control expert"—for instance, in the connection between the control panel and the body of a washing machine, the spacer nut can control the spacing between the panel and the body, avoiding deformation of the panel due to extrusion. Inside microwave ovens, the fixing of the high-voltage transformer and the shell requires the use of high-temperature-resistant PA66 spacer nuts, which are both insulating and capable of withstanding the high temperature generated by the transformer during operation. In the automotive industry, it is the "invisible supporter" for interior assembly—such as in the connection between the car's central control screen and the instrument panel, the spacer nut can ensure the flatness of the screen, while its insulation prevents the screen circuit from conducting electricity with the metal instrument panel. In door interior panels, the spacer nut supports the interior panel and the door's metal frame, reducing abnormal noise during driving.

When using the PA66 white nylon hexagonal spacer nut, attention should be paid to selecting the appropriate specification and type according to actual needs. First, the cylinder length should be selected based on the component spacing—common specifications such as 5mm, 8mm, and 10mm—to ensure the reserved gap meets heat dissipation or assembly requirements. Second, the thread type should be chosen according to the connection method: the internal thread type is suitable for fixing upper-layer components, the external thread type for base connection, and the internal-external thread type for connecting double-layer components. Finally, the cylinder diameter should be selected based on the mounting hole size—thread specifications such as M3, M4, and M5—to avoid assembly looseness caused by mismatched sizes. During installation, the tightening force should be controlled: excessive force may cause the PA66 nylon to break. It is recommended to use a torque wrench and operate in accordance with the material's torque standard (usually 0.5-2N・m). After long-term use, the spacer nut should be regularly inspected for cracks or deformation; if damage is found, it should be replaced in a timely manner to prevent component looseness and subsequent failures.

With the increasing demand for "precision", "lightweight", and "insulation protection" in the manufacturing industry, the application scenarios of the PA66 white nylon hexagonal spacer nut will continue to expand. It is not only a basic fastener but also a key link in "space control" and "safety protection" during product assembly, playing an irreplaceable role in ensuring product performance, extending service life, and improving assembly efficiency. Whether in the micro-assembly of electronic devices or the structural support of home appliances and automobiles, the PA66 white nylon hexagonal spacer nut, with its excellent material properties and precise structural design, has become an "invisible guardian" in the field of precision manufacturing.
